    1 1/16" Drop Ball Hydraulic Disconnect For Coiled Tubing Tools String

    Ask Lasest Price
    Brand Name : ZZ TOP OIL TOOLS
    Model Number : Drop Ball Hydraulic Disconnect
    Certification : ISO, API
    Price : USD 1-10000/set
    Payment Terms : L/C, T/T, D/P
    Supply Ability : 10 set/month
    Delivery Time : 30-50 days
    • Product Details
    • Company Profile

    1 1/16" Drop Ball Hydraulic Disconnect For Coiled Tubing Tools String

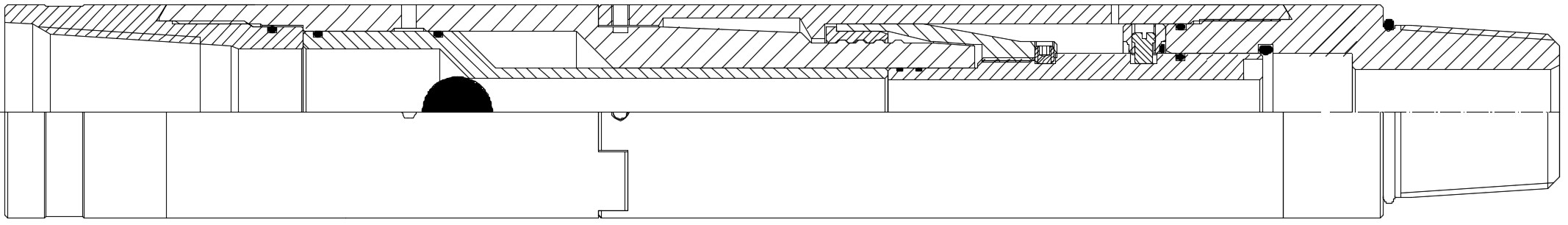

    Drop Ball Hydraulic Disconnect For Coiled Tubing Tool String


    The Drop Ball hydraulic disconnect allows the tool string to detach at a predetermined point via the deployment of a suitable drop/trip ball through the coiled tubing. The drop ball locates on a piston sleeve, creating sufficient back pressure to shear the pins and disconnect the tool. When this happens, the piston sleeve pushes the tool apart to ensure a clean disconnect, and circulation is immediately returned to the toolstring, providing a surface indication of a positive disconnect. All piston sleeves and drop balls are returned to the surface, leaving a standard GS internal fish neck for retrieval purposes.


    Specification of Drop Ball Hydraulic Disconnect


    CT SizeODIDConnectionOperating PressureTemp. RatingTensile StrengthServiceFinish NeckDrop Ball Size
    1 11/16”1.687”0.469”1” AMMT5000psi0-400F45000lbsNormal1.38”5/8”
    2 1/8”2.125”0.469”1 1/2” AMMT5000psi0-400F50000lbsNormal1.38”5/8”
    2 7/8”2.875”0.875”2 3/8” PAC5000psi0-400F75000lbsNormal2.31”15/16”
    3 1/8”3.125”1”2 3/8” PAC5000psi0-400F85000lbsNormal2.31”1 1/8”
    1 11/16”1.687”0.469”1” AMMT5000psi0-400F42000lbsH2S1.38”5/8”
    2 1/8”2.125”0.469”1 1/2” AMMT5000psi0-400F48000lbsH2S1.38”5/8”
    2 7/8”2.875”0.875”2 3/8” PAC5000psi0-400F70000lbsH2S2.31”15/16”
    3 1/8”3.125”1”2 3/8” PAC5000psi0-400F75000lbsH2S2.31”1 1/8”
